一、Looper(Native)
序言
简介
在Android P源码分析之Handler(JAVA)篇中,我们分析了Java层的消息循环处理流程,其中Looper扮演着不断从消息队列中取出消息进行分发处理的重要角色.而在Native层中,也存在着相同作用的Looper.
示例

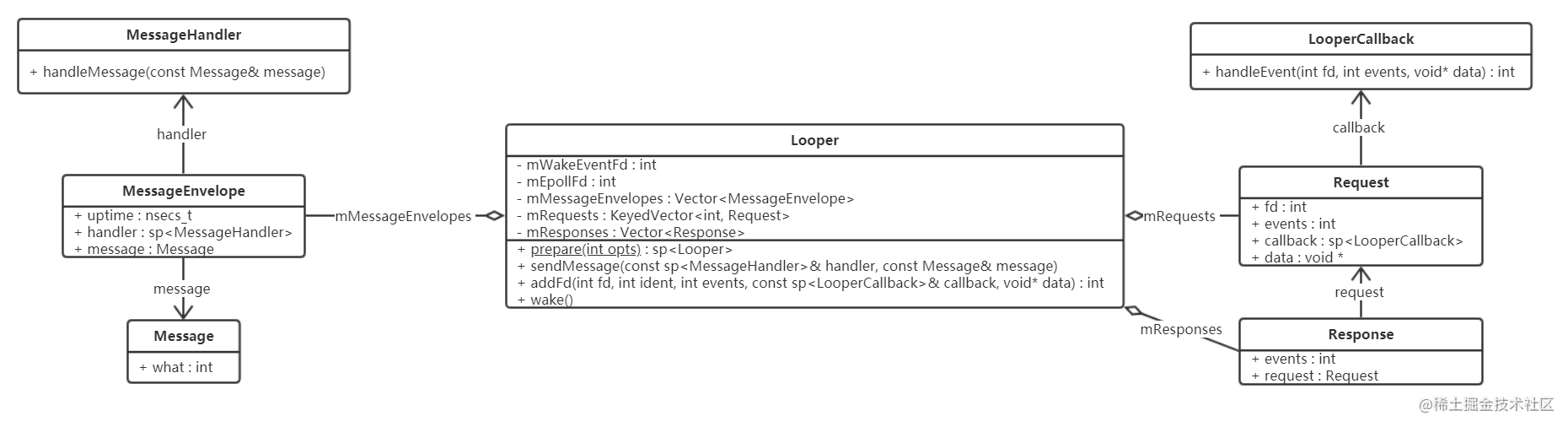

类定义
class LocalHandler : public MessageHandler, public LooperCallback{
/* MessageHandler为消息事务处理类, LooperCallback为Fd事务处理类 */
public:
virtual void handleMessage(const Message& message) {
/* 消息事务处理函数,在消费者线程consumerThread中执行 */
printf("tid : %d, receive message : %d\n", gettid(), message.what);
}
virtual int handleEvent(int fd, int events, void* data __unused) {
/* Fd事务处理函数,在消费者线程consumerThread中执行 */
char recvMsg[128] = { 0 };
if (events & Looper::EVENT_INPUT) {
if (read(fd, recvMsg, sizeof(recvMsg) / sizeof(*recvMsg)) < 0) {
printf("tid : %d, read fail, reason : %s\n",gettid(), strerror(errno));
return 0;
}
printf("tid : %d, receive event : %s\n",gettid(), recvMsg);
}
return 1;
}
};
消费者线程执行体
void *consumerThread_func(void *arg __unused) {
looper = Looper::prepare(0); /* 创建线程唯一的Looper对象并绑定到消费者线程,见1.1 */
sem_post(&sem); /* 通知生产者线程producerThread Looper就绪 */
while (consumeThreadExit == 0) {
/* 循环处理Looper事务,见1.4 */
looper -> pollOnce(-1);
}
return NULL;
}
生产者线程执行体
void *producerThread_func(void *arg __unused) {
char msg[128] = { 0 };
int fd[2];
/* 创建事务处理者handler */
sp<LocalHandler> handler = new LocalHandler();
/* 创建pipe,其中fd[0]为读取端,fd[1]为写入端 */
pipe(fd);
/* 等待消费者线程初始化Looper */
sem_wait(&sem);
printf("tid : %d sem_wait looper prepare success\n",gettid());
/* 发送消息事务Message,唤醒消费者线程consumerThread处理消息事务 */
looper -> sendMessage(handler, Message());
/* 添加Fd事务请求:Fd为pipe读取端fd[0],事务类型为事件可读 */
looper -> addFd(fd[0], 0, Looper::EVENT_INPUT, handler, NULL);
/* 从终端读取字符串,并写到pipe的写入端fd[1]
* 此时pipe的poll状态变为可读,从而唤醒消费者线程consumerThread处理Fd事务
*/
fgets(msg, sizeof(msg) / sizeof(*msg), stdin);
write(fd[1], msg, strlen(msg) + 1);
close(fd[0]);
close(fd[1]);
return NULL;
}
运行结果
tid : 8234 sem_wait looper prepare success /* 生产者线程 */
tid : 8235, receive message : 0 /* 消费者线程处理消息事务 */
Hello World <---终端输入
tid : 8235, receive event : Hello World /* 消费者线程处理Fd事务 */
接下来我们将从消费者线程和生产者线程角度分析示例流程
源码分析
消费者线程
我们首先分析Looper(Native)的初始化函数prepare
1.1 prepare
sp<Looper> Looper::prepare(int opts) {
......
/* 获取当前消费者线程线程绑定的Looper对象
* 由于这里首次调用prepare,还未绑定Looper,因此返回空
*/
sp<Looper> looper = Looper::getForThread();
if (looper == NULL) {
/* 创建Looper对象(见1.2),然后绑定到当前消费者线程中 */
looper = new Looper(allowNonCallbacks);
Looper::setForThread(looper);
}
return looper;
......
}
1.2 Looper构造函数
Looper::Looper(bool allowNonCallbacks) {
......
/* 创建eventfd文件描述符mWakeEventFd,用于唤醒处于epoll_wait休眠状态下的消费者线程 */
mWakeEventFd = eventfd(0, EFD_NONBLOCK | EFD_CLOEXEC);
AutoMutex _l(mLock);
/* 见1.3 */
rebuildEpollLocked();
......
}
1.3 rebuildEpollLocked
void Looper::rebuildEpollLocked() {
......
/* 创建epoll文件描述符,用于监听多路IO状态 */
mEpollFd = epoll_create(EPOLL_SIZE_HINT);
/* epoll添加mWakeEventFd监听(可读) */
struct epoll_event eventItem;
memset(& eventItem, 0, sizeof(epoll_event));
eventItem.events = EPOLLIN;
eventItem.data.fd = mWakeEventFd;
int result = epoll_ctl(mEpollFd, EPOLL_CTL_ADD, mWakeEventFd, & eventItem);
......
}
小结
1.创建Looper对象并绑定到消费者线程
2.创建eventfd文件描述符mWakeEventFd
3.创建epoll文件描述符mEpollFd,并将mWakeEventFd添加到监听Fd事项中
接下来分析Looper(Native)事务处理函数pollOnce
1.4 pollOnce
int Looper::pollOnce(int timeoutMillis, int* outFd, int* outEvents, void** outData) {
......
int result = 0;
for (;;) {
/* 当result不为0时,返回 */
if (result != 0) {
......
return result;
}
/* 见1.5 */
result = pollInner(timeoutMillis);
}
......
}
1.5 pollInner
int Looper::pollInner(int timeoutMillis) {
......
/* 校准epoll超时时间,取timeoutMillis和(mNextMessageUptime - now)之间大于0且较小的那个 */
if (timeoutMillis != 0 && mNextMessageUptime != LLONG_MAX) {
nsecs_t now = systemTime(SYSTEM_TIME_MONOTONIC);
int messageTimeoutMillis = toMillisecondTimeoutDelay(now, mNextMessageUptime);
if (messageTimeoutMillis >= 0
&& (timeoutMillis < 0 || messageTimeoutMillis < timeoutMillis)) {
timeoutMillis = messageTimeoutMillis;
}
}
int result = POLL_WAKE;
/* 清除Fd就绪事务队列 */
mResponses.clear();
mResponseIndex = 0;
struct epoll_event eventItems[EPOLL_MAX_EVENTS];
/* 消费者线程调用epol_wait超时休眠,等待监听的Fd事项就绪 */
int eventCount = epoll_wait(mEpollFd, eventItems, EPOLL_MAX_EVENTS, timeoutMillis);
/* 如果是超时唤醒,则直接跳过就绪Fd事项数组遍历 */
if (eventCount == 0) {
result = POLL_TIMEOUT;
goto Done;
}
/* 遍历就绪Fd事项数组eventItems */
for (int i = 0; i < eventCount; i++) {
int fd = eventItems[i].data.fd;
uint32_t epollEvents = eventItems[i].events;
if (fd == mWakeEventFd) {
/* 当mWakeEventFd在就绪Fd事项数组中,需调用awoken函数读取mWakeEventFd的内容,
* 防止下次调用epoll_wait时,mWakeEventFd的poll状态仍为可读导致直接返回(epoll水平触发特性)
*/
if (epollEvents & EPOLLIN) {
awoken();
}
} else {
/* 以文件描述符fd为索引值取出对应的事务请求Request,用于构建Fd就绪事务Response对象,
* 然后将Response入队到Fd就绪事务队列mResponses中等待处理
*/
ssize_t requestIndex = mRequests.indexOfKey(fd);
if (requestIndex >= 0) {
int events = 0;
if (epollEvents & EPOLLIN) events |= EVENT_INPUT;
if (epollEvents & EPOLLOUT) events |= EVENT_OUTPUT;
if (epollEvents & EPOLLERR) events |= EVENT_ERROR;
if (epollEvents & EPOLLHUP) events |= EVENT_HANGUP;
pushResponse(events, mRequests.valueAt(requestIndex));
}
}
}
Done: ;
/* 遍历消息事务队列mMessageEnvelopes */
while (mMessageEnvelopes.size() != 0) {
nsecs_t now = systemTime(SYSTEM_TIME_MONOTONIC);
const MessageEnvelope& messageEnvelope = mMessageEnvelopes.itemAt(0);
if (messageEnvelope.uptime <= now) {
/* 当前时间 > 消息事务messageEnvelope分发时间,
* 消息事务messageEnvelope出队并执行事务处理(handleMessage)
*/
{
sp<MessageHandler> handler = messageEnvelope.handler;
Message message = messageEnvelope.message;
mMessageEnvelopes.removeAt(0);
handler->handleMessage(message);
}
} else {
/* 未到消息事务分发时间,
* 设置mNextMessageUptime为消息事务分发时间uptime,并跳出遍历
*/
mNextMessageUptime = messageEnvelope.uptime;
break;
}
}
/* 遍历Fd就绪事务队列mResponses */
for (size_t i = 0; i < mResponses.size(); i++) {
Response& response = mResponses.editItemAt(i);
if (response.request.ident == POLL_CALLBACK) {
/* Fd事务请求的标识ident为POLL_CALLBACK,
* 处理Fd就绪事务response(handleEvent)
* Fd事务处理函数handleEvent返回值为0时,epoll将移除对Fd事务请求request的监听
*/
int fd = response.request.fd;
int events = response.events;
void* data = response.request.data;
int callbackResult = response.request.callback->handleEvent(fd, events, data);
if (callbackResult == 0) {
removeFd(fd, response.request.seq);
}
}
}
return result;
......
}
小结
1.消费者线程调用epoll_wait检测是否有事务就绪,如果无事务就绪则会进入休眠,等待事务就绪时唤醒
2.当Fd事项就绪时,消费者线程被唤醒.先处理消息事务MessageEnvelope(handleMessage),最后处理Fd就绪事务Response(handleEvent,返回值为0时epoll将移除对Fd事务请求request的监听)
生产者线程
我们首先分析下发送消息事务sendMessage
2.1 sendMessage
void Looper::sendMessage(const sp<MessageHandler>& handler, const Message& message) {
nsecs_t now = systemTime(SYSTEM_TIME_MONOTONIC);
/* 见2.2 */
sendMessageAtTime(now, handler, message);
}
2.2 sendMessageAtTime
void Looper::sendMessageAtTime(nsecs_t uptime, const sp<MessageHandler>& handler,
const Message& message) {
......
size_t i = 0;
/* 构建消息事务MessageEnvelope并入队到消息事务队列mMessageEnvelopes中(分发时间uptime升序排序) */
size_t messageCount = mMessageEnvelopes.size();
while (i < messageCount && uptime >= mMessageEnvelopes.itemAt(i).uptime) {
i += 1;
}
MessageEnvelope messageEnvelope(uptime, handler, message);
mMessageEnvelopes.insertAt(messageEnvelope, i, 1);
/* 如果入队的位置为头部,则立即唤醒消费者线程进行处理 */
if (i == 0) {
wake(); /* 见2.3 */
}
......
}
2.3 wake
void Looper::wake() {
......
/* 当对mWakeEventFd写入内容时, mWakeEventFd的poll状态变为可读就绪状态
* 由于epoll监听mWakeEventFd,因此当mWakeEventFd就绪时,消费者线程会从epoll_wait的休眠中被唤醒
*/
uint64_t inc = 1;
ssize_t nWrite = TEMP_FAILURE_RETRY(write(mWakeEventFd, &inc, sizeof(uint64_t)));
if (nWrite != sizeof(uint64_t)) {
if (errno != EAGAIN) {
LOG_ALWAYS_FATAL("Could not write wake signal to fd %d: %s",
mWakeEventFd, strerror(errno));
}
}
......
}
小结
1.生产者线程构建消息事务messageEnvelope,并入队到消费者线程的消息事务队列mMessageEnvelopes中(分发时间uptime升序排序)
2.如果入队位置为头节点,则调用wake唤醒消费者线程处理事务
接下来分析添加Fd事务请求addfd
2.4 addfd
int Looper::addFd(int fd, int ident, int events, const sp<LooperCallback>& callback, void* data) {
......
/* 构建Fd事务请求request */
Request request;
request.fd = fd;
request.ident = ident;
request.events = events;
request.seq = mNextRequestSeq++;
request.callback = callback;
request.data = data;
ssize_t requestIndex = mRequests.indexOfKey(fd);
if (requestIndex < 0) {
/* 首次添加Fd事务请求
* 1.epoll添加该fd监听
* 2.将request加入到Fd事务请求队列mRequests中
*/
int epollResult = epoll_ctl(mEpollFd, EPOLL_CTL_ADD, fd, & eventItem);
mRequests.add(fd, request);
} else {
/* 非首次添加Fd事务请求
* 1. epoll更新该fd监听事项
* 2. 更新Fd事务请求request
*/
int epollResult = epoll_ctl(mEpollFd, EPOLL_CTL_MOD, fd, & eventItem);
mRequests.replaceValueAt(requestIndex, request);
}
return 1;
......
}
小结
1.生产者线程构建Fd事务请求request,并入队到消费者线程的Fd事务请求队列mRequests中
2.消费者线程mEpollFd添加fd事项监听

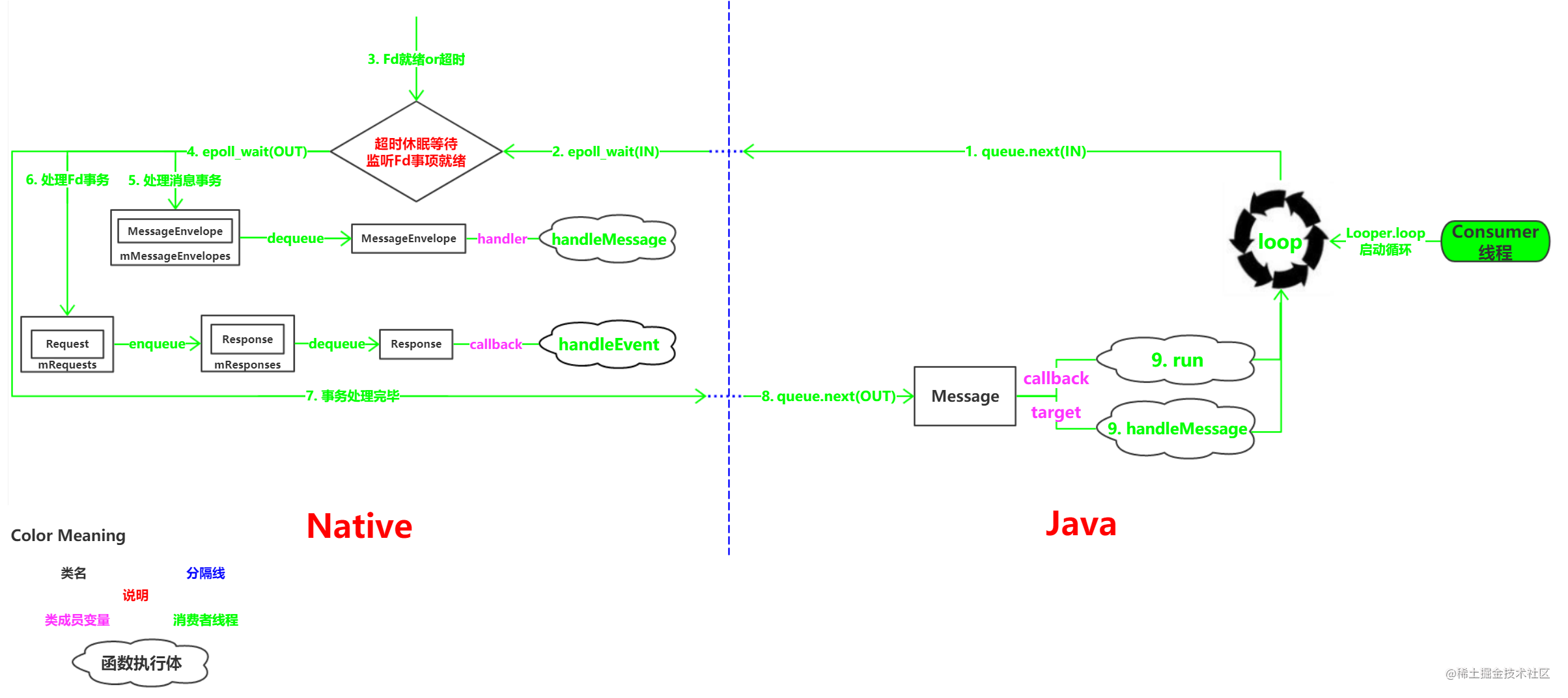

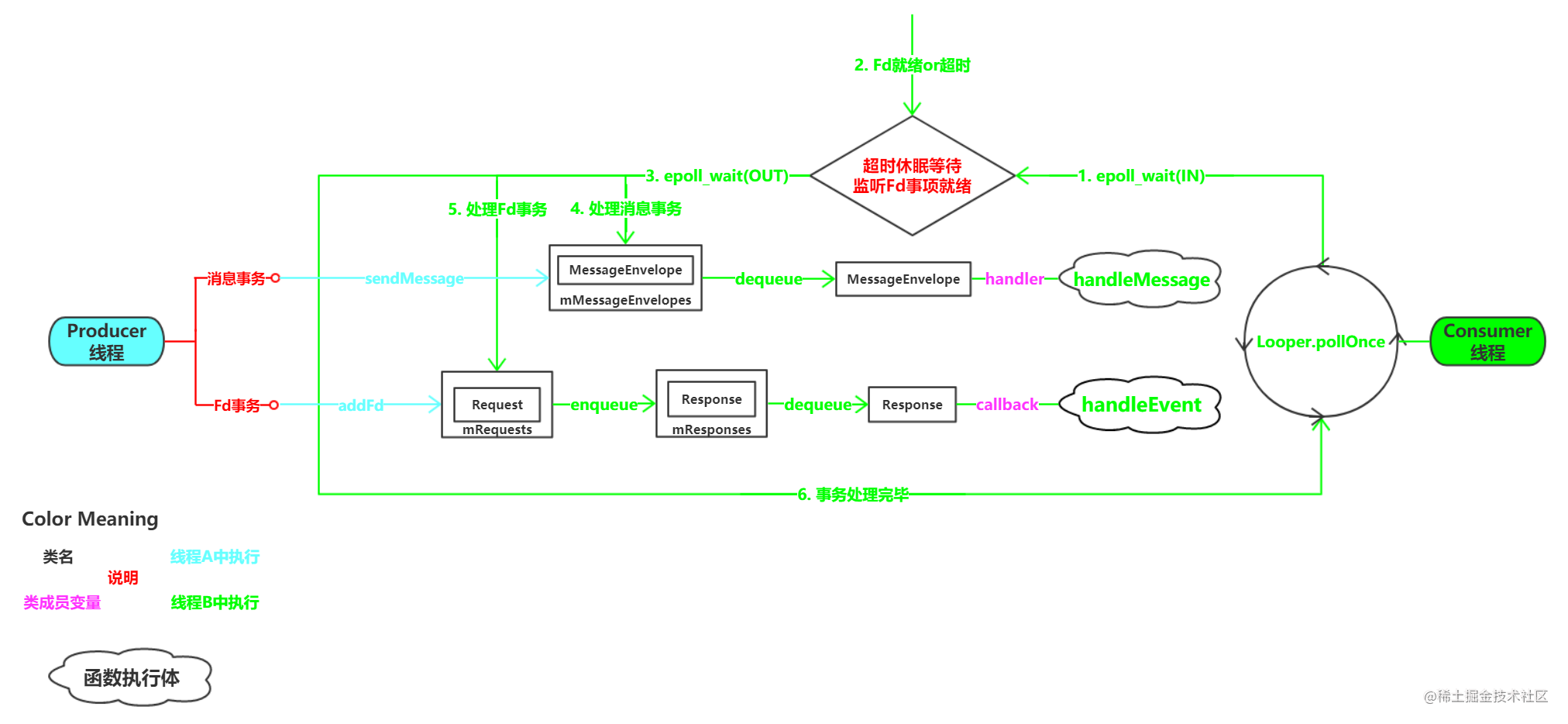

1.消费者线程创建Looper(Native),并调用pollOnce处理事务,当无事务处理时,epoll_wait会让消费者线程进入休眠状态
2.生产者线程传入事务到消费者线程的事务队列中,并唤醒消费者线程进行处理
二、MessageQueue
简介
在Android P源码分析之Handler(JAVA)篇中,我们分析了MessageQueue类的取出消息next流程以及入队消息enqueueMessage流程
以上两个流程中,都有调用Native方法(nativePollOnce和nativeWake),接下来我们将对这两个Native方法进行分析
源码分析
我们首先分析MessageQueue的构造函数
3.1 MessageQueue构造函数
MessageQueue(boolean quitAllowed) {
mQuitAllowed = quitAllowed;
/* Native函数,构建NativeMessageQueue对象并返回对象地址,见3.2 */
mPtr = nativeInit();
}
3.2 nativeInit
static jlong android_os_MessageQueue_nativeInit(JNIEnv* env, jclass clazz) {
......
/* 构建NativeMessageQueue对象,构造函数见3.3 */
NativeMessageQueue* nativeMessageQueue = new NativeMessageQueue();
/* 返回nativeMessageQueue对象地址 */
return reinterpret_cast<jlong>(nativeMessageQueue);
......
}
3.3 NativeMessageQueue构造函数
NativeMessageQueue::NativeMessageQueue() {
......
/* 获取当前消费者线程线程绑定的Looper对象
* 由于这里首次构建NativeMessageQueue,还未绑定Looper,因此返回空
*/
mLooper = Looper::getForThread();
if (mLooper == NULL) {
/* 构建Looper(Native)对象并绑定到消费者线程,构造函数见1.2 */
mLooper = new Looper(false);
Looper::setForThread(mLooper);
}
......
}
小结
1.MessageQueue(Java)构建了NativeMessageQueue(Native)对象,并记录该对象地址
2.NativeMessageQueue(Native)构建Looper(Native)对象,并绑定到消费者线程
接下来分析MessageQueue取出消息next函数中使用的nativePollOnce方法
3.4 next
Message next() {
......
int pendingIdleHandlerCount = -1; // -1 only during first iteration
int nextPollTimeoutMillis = 0;
for (;;) {
......
/* native方法,处理Looper(Native)事务
* 如无事务处理则会让消费者线程进入超时休眠状态,nextPollTimeoutMillis为超时时间,见3.5
*/
nativePollOnce(ptr, nextPollTimeoutMillis);
/* 以下为取消息Message流程,这里不再重复贴出 */
......
}
......
}
3.5 nativePollOnce
static void android_os_MessageQueue_nativePollOnce(JNIEnv* env, jobject obj,
jlong ptr, jint timeoutMillis) {
/* 指针转换,得到从nativeInit构建的NativeMessageQueue对象 */
NativeMessageQueue* nativeMessageQueue = reinterpret_cast<NativeMessageQueue*>(ptr);
/* 最终调用的是消费者线程Looper(Native)的pollOnce进行事务处理,见1.4 */
nativeMessageQueue->pollOnce(env, obj, timeoutMillis);
}
小结
1.Looper(Java)启动消息循环,先处理Looper(Native)事务,然后再处理Looper(Java)事务
2.Looper(Native)和Looper(Java)均无事务处理时,消费者线程会进入超时休眠状态,等待事务就绪时唤醒
最后分析入队消息enqueueMessage函数中使用的nativeWake方法
3.6 enqueueMessage
boolean enqueueMessage(Message msg, long when) {
......
/* 以上为消息事务Message入队列流程,这里不再重复贴出 */
if (needWake) {
/* native方法,唤醒消费者线程,见3.7 */
nativeWake(mPtr);
}
......
}
3.7 nativeWake
static void android_os_MessageQueue_nativeWake(JNIEnv* env, jclass clazz, jlong ptr) {
/* 指针转换,得到从nativeInit构建的NativeMessageQueue对象 */
NativeMessageQueue* nativeMessageQueue = reinterpret_cast<NativeMessageQueue*>(ptr);
/* 唤醒处于epoll_wait休眠状态下的消费者线程,见2.3 */
nativeMessageQueue->wake();
}
小结
生产者线程将消息事务Message(Java)入队到消费者线程的消息队列MessageQueue(Java)中,如果符合唤醒条件则会调用Native方法nativeWake唤醒消费者线程
